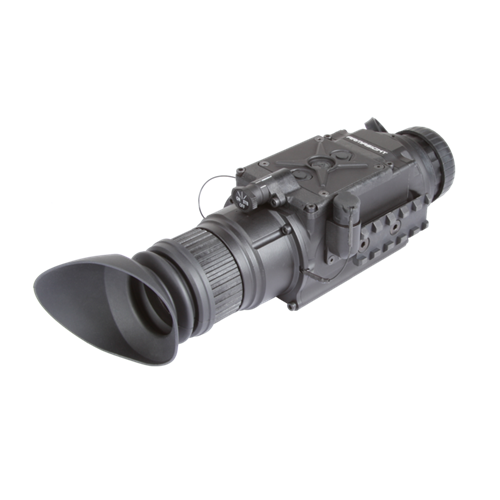

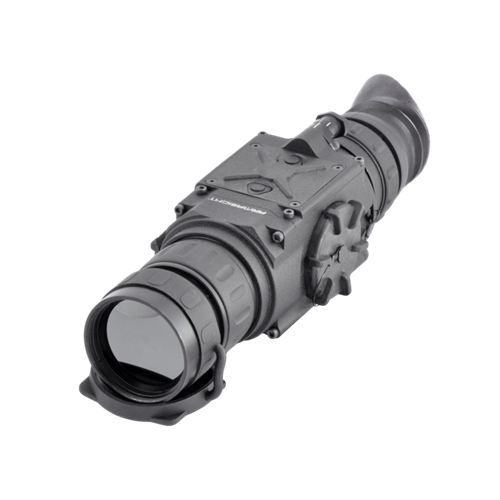

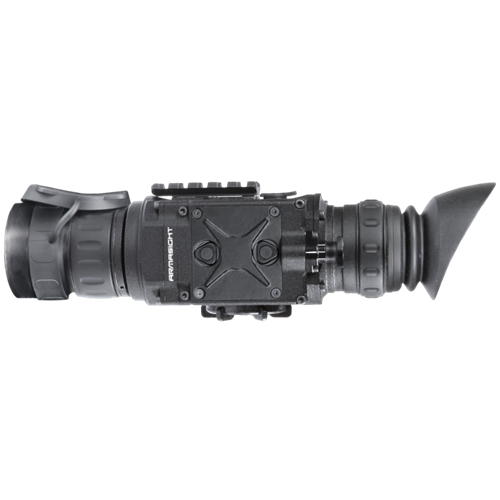

ARMASIGHT Prometheus 2 640-30 42mm lens Thermal Imaging Monocular
Armasight Prometheus is the latest and most technologically advanced thermal imaging monocularto enter the sporting, law enforcement, and military markets. ThePrometheus product line is based on the latest FLIR Tau 2 VOxmicrobolometer core, and is available in a variety of models – eachoptimizing performance, price, and state-of-the-art technology formyriad uses and mission applications. The Prometheus is a solid state,uncooled, long-wave infrared, magnified, dedicated handheld thermalimager intended for day and night engagements. The 24/7 missioncapability is only one of the strengths of Prometheus. The thermalimaging technology also allows you to detect targets by cutting throughsnow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlikethe use of laser targeting or near-infrared illumination to augmentnight vision equipment, the Prometheus thermal imager is extremelydifficult to detect with other devices, as it emits no visible light orRF energy.
- Special User-Adjustable Imaging Tools
- Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
- Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
- Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
- Information-Based Histogram Equalization (IBHEQ) – a “Sky/Sea” enhancement – information based environment dependent algorithm that automatically adjusts camera gain and excludes pixels determined to not contain critical information, specifically helpful in scenes with lots of sky or water.
- User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Prometheus models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
- Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Prometheus models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.
INCLUDED ACCESSORIES:
Video Cable
Battery Cassette
Soft carrying Case
Packing Box
Lens Tissue
Two Lithium Battery CR123A
Instruction Manual with Warranty Card
AWReC (Advanced Wireless Remote Control) #94
Picatinny adapter for AWReC (Advanced Wireless Remote Control)
Refresh Rate | 30 Hz |
---|---|
Magnification (NTSC/PAL) | 1.5x / 1.8x |
Objective Lens Type | Germanium |
Type of Focal Plane Array | FLIR Tau 2 |
Pixel Array Format | 640×512 |
Pixel Size | 17 µm |
Display Type | AMOLED SVGA 060 |
Pixel Display Format | 800×600 |
Display Brightness | Discretely Adjustable to 8 Levels |
Turn-on Time, max | 3 sec |
Digital Zoom | 1x, 2x, 4x, and 8x |

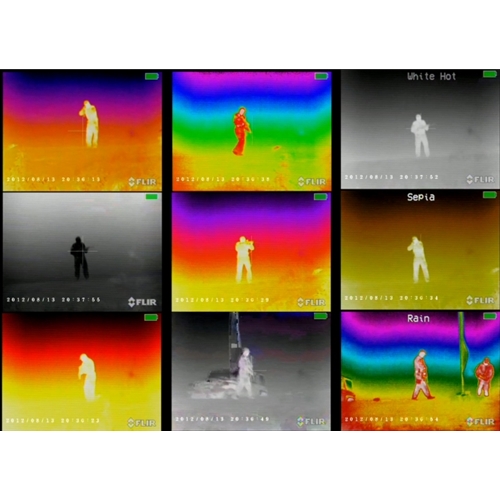

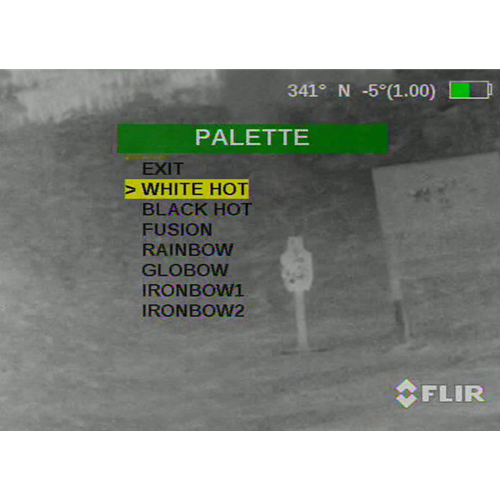

Image Palettes | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom |
Analog Input and Output Format (resolution) | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
Video Recording | Optional Digital Video Recorder with SD card slot |
Remote Control | Wireless |
SPECIAL USER-ADJUSTABLE IMAGING TOOLS: | |
Active Contrast Enhancement (ACE) - “CONTRAST” | Yes |
Second Generation Digital Detail Enhancement (DDE) – “SHARPNESS” | Yes |
Smart Scene Optimization (SSO) – “SMART SCENE” | Yes |
Information-Based Histogram Equalization (IBHEQ) – “SKY/SEA” | Yes |
User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC) | Yes |
Silent Shutterless NUC ™ (SSN) | Yes |
OPTICAL DATA: | |
Objective Focal Length | 42 mm |
Objective F-number | 1:1 |
Field of View (ang.) | 14.8° x 11.8° |
Exit Pupil Diameter | 14 mm |
Eye Relief | 25 mm |
Focus Method | Manual |
Focusing Range | 5m to inf. |
Diopter Adjustment | Manual |
Diopter Adjustment Range | ±5 diopter |
ELECTRICAL DATA: | |
Battery | Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2) |
Battery Life at 20 °C (68 °F) | up to 4 hr (optional up to 12 hrs) |
Extended Battery Pack | Two 18650 rechargeable batteries (3.7V), or four CR123 rechargeable batteries with voltage 3.7V max, or four standard CR123A 3V Lithium batteries (operational time up to 8 hr) |
External Power Supply | 6 VDC/ 600mА |
ENVIRONMENTAL DATA: | |
Operating Temperature | -40 to +50°C (-40 to +122°F) |
Storage Temperature | -50 to +70°C (-58 to +158°F) |
Recoil Resistance | 700 g |
Environmental Rating | Water and Fog-Resistant |
MECHANICAL DATA: | |
Overall Dimensions | 194×68×62 mm (7.6”×2.7”×2.4“) |
Weight (w/o Batteries) | 0.55 kg (1.2 lbs) |
WARRANTY DATA: | |
Warranty | 3 years |
Warranty on FLIR detector | 10 years |
- The lightest and most compact scope in its class
- Easy and Intuitive Drop-down user interface
- Digital E-Zoom: 1x, 2x, 4x, and 8x
- Imaging Filter Algorithms:
– Active Contrast Enhancement™ (ACE)
– Second Generation Digital Detail Enhancement™ (DDE)
– Smart Scene Optimization™ (SSO)
– Information-Based Histogram Equalization™ (IBHEQ)
– Silent Shutterless Non-uniformity Correction™ (SSN) - Color Modes: White Hot/ Black Hot/ Rainbow/ Various Color modes
- Extended operation time with optional external battery power supply
- Recording: video output /optional Video Recorder with onboard replay
- CNC machined aircraft-aluminum alloy construction
- Rapid start-up
- Made in the USA
- Limited 3-year warranty
- 10-year warranty on FLIR detector
