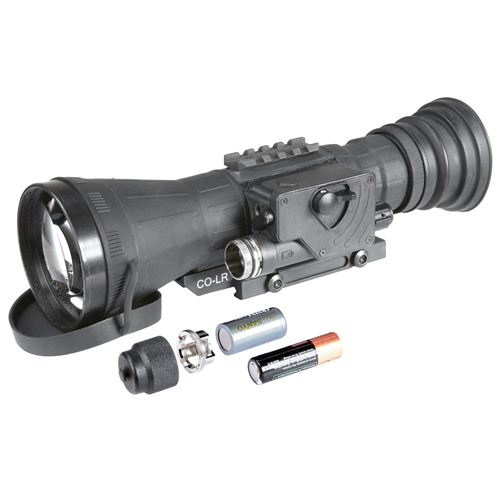

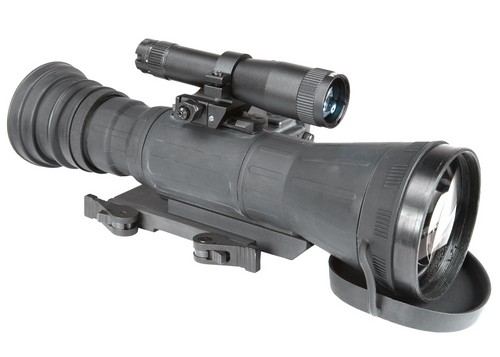

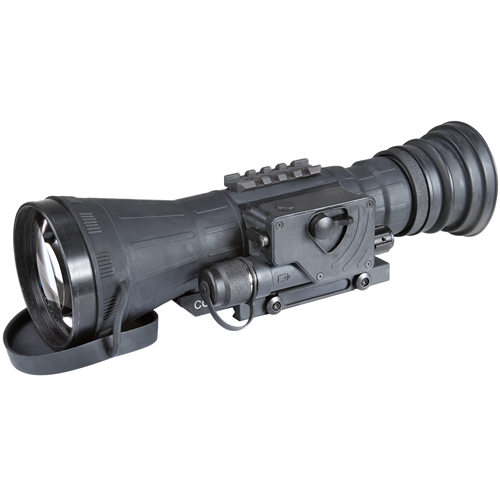

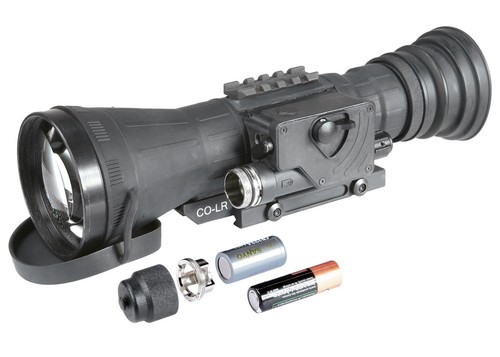

FLIR CO-LR-LRF 3G MG Gen 3 Ghost White Phosphor MG Long Range Night Clip-On
The Armasight CO-LR (Clip On – Long Range) is a night vision unitthat mounts in front of an existing day Multipurpose Viewer, and converts the dayMultipurpose Viewer to night vision capability up to ranges of 1000 yards. Suitablefor use with most commercial and military specification day time sights,teleMultipurpose Viewers or binoculars (up to 12X magnification), the CO-LR can bemounted/dismounted on a standard Picatinny rail in seconds, and with notools required. Because the CO-LR is mounted in front of your own dayMultipurpose Viewer, the shooters eye relief is not altered, and shot release andfollow through all remain intuitive – because the unit is factorybore-sighted to better than 1MOA accuracy, no alteration in zero isexperienced, so it really is as simple as mount-focus-shoot, just as inday time.
The Armasight CO-LR is intended primarily for use by themost demanding hunter or long range target shooter, but with a buildquality that makes it capable of so much more -its MIL-STD-810 housingis designed to take just about anything the great outdoors can throw atit. The CO-LR is packed with innovative features like variable gaincontrol, bright light shut-off, wireless remote control. This nightvision clip on is designed to make long range night shooting just aseasy and accurate as shooting over the same terrain during daylighthours with your day Multipurpose Viewer alone.
Whether your day Multipurpose Viewer is a wellknown brand or not, the Armasight CO-LR will work just as well atmagnifications anywhere from 3X to 12X.The Armasight CO-LR Ghost MG is equipped with a high-performance Armasight Ghost White Phosphor Gen 3 IIT with manual gain control providing a clear black and white image and resolution of 47-54 lp/mm.
- AWReC (Advanced Wireless Remote Control) #94
- Battery adapter 1x CR123A 3V / 1x 2AA 1.5V
- Instruction Manual with Warranty Card
- IR850 Detachable Long Range Infrared illuminator/ 1x CR123A 3V
- Lens Cap
- Lens Tissue
- Light-Suppressor
- One Lithium Battery CR123A
- Picatinny adapter for AWReC (Advanced Wireless Remote Control)
- Soft carrying Case
SYSTEM OVERVIEW | ||||||||||
Focus Range | 25 m to Infinity | |||||||||
Resolution | 47-57 lp/mm | |||||||||
Warranty | 2 Years | |||||||||
Height of the Scope Axis above Rail | 40 mm | |||||||||
Lens System | F/1.54; 108 mm | |||||||||
Magnification | 1× (recommended to use with up to 12x day time optics) | |||||||||
Eye Relief [mm] | - | |||||||||
IIT Generation | Gen 3 Ghost ("Ghost" White Phosphor) MG | |||||||||
Optional Accessories | Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, | |||||||||
XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder | ||||||||||
Photocathode Type | GaAs | |||||||||
Windage_Elevation Adjustment | - | |||||||||
ACCESSORIES
|
||||||||||
Included Accessories | Battery adapter CR123A 3V / AA 1.5V, | |||||||||
XLR-IR850 Detachable X-Long Range Infrared Illuminator, | ||||||||||
Adjustment-Control-DeviceBattery, Picatinny adapter for AWReC (Advanced Wireless Remote Control), | ||||||||||
AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, | ||||||||||
Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue | ||||||||||
CONNECTIONS & COMMUNICATIONS
|
||||||||||
Remote Control | Wireless | |||||||||
ENVIRONMENTAL & APPROVALS
|
||||||||||
Operating Temperature | -40°C to +50°С (-40°F to +122°F) | |||||||||
Storage Temperature | -50°C to +70°С (-58°F to +158°F) | |||||||||
IMAGING & OPTICAL
|
||||||||||
Diopter Adjustment | - | |||||||||
Field of View | 9° | |||||||||
Reticle Type | - | |||||||||
Automatic Brightness Control | Yes | |||||||||
Bright Light Cut_off | Yes | |||||||||
Exit Pupil Diameter [mm] | 50 mm | |||||||||
Infrared Illuminator | Detachable Long Range IR | |||||||||
IR Indicator | No | |||||||||
Manual Gain Control | Yes | |||||||||
Reticle Color | - | |||||||||
PHYSICAL
|
||||||||||
Product Weight | 1.1 kg (2.4 lbs) | |||||||||
Tripod Mount | - | |||||||||
PHYSICAL FEATURES
|
||||||||||
Dimensions (L x W x H) | 240 х 97 х 87 mm (9.4 х 3.8 х 3.4 in) | |||||||||
POWER
|
||||||||||
Auto Power Off | Yes | |||||||||
Battery Life | Up to 45 hours | |||||||||
Power Supply | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) | |||||||||
Low Battery Indicator | Yes (in FOV) | |||||||||
- Laser Range Finder Capabilities (Laser Range Finder is sold separately)
- Simple and quick conversion of daytime scope to night vision
- Mounts in front of any daytime scope with no rezeroing required
- Gen 3 White Phosphor image intensifier tube
- Manual gain control
- Powered by a single alkaline 1.5V AA or 3V CR123A lithium battery
- Low battery indicator
- Equipped with wireless remote and Quick-release mount
- Bright light cut-off system
- Mil standard compliant
- Includes IR Illuminator
- Limited two-year warranty
