InfiRay BOLT TX60C 1024 12um 3x-16x 60mm 50Hz Thermal
In stock
SKU:IRAY-TX60C
List Price: $7,499.00
Regular Price: $6,999.00
On Sale For: $6,999.00
You Save: $500.00
Free 2nd Day Shipping |

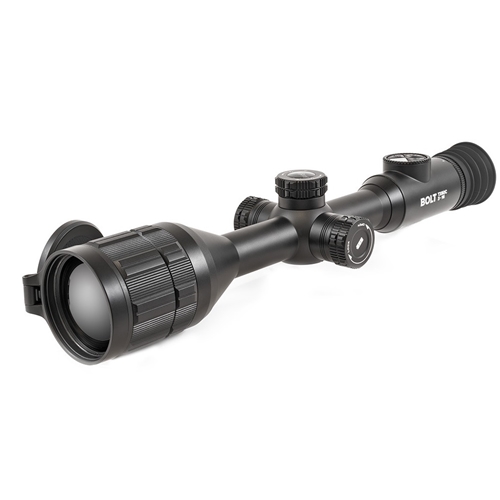

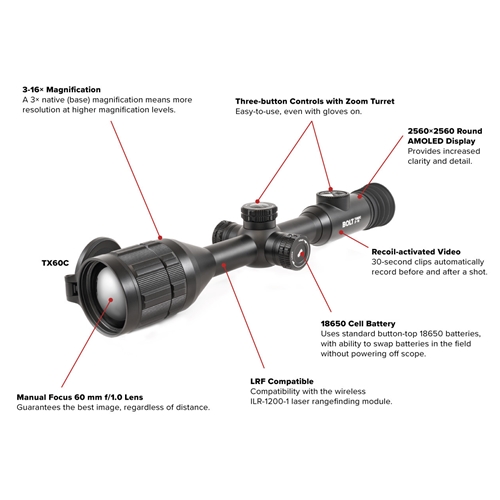

The BOLT TX60C provides hunters with a high-resolution 1024×1024 InfiRay Micro II thermal sensor at a native 3× magnification and digital zoom up to 16×, ideal for predator hunting and longer-range shots. Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels. A fast f/1.0 germanium objective lens, a sensitivity rating of ≤18mK, and a round 2560×2560 AMOLED display provide exceptional detail and precision. The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings. Wirelessly paired with the ILR-1200-1 Laser Rangefinding module, the TX60C is capable of displaying real-time ranges on-screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.

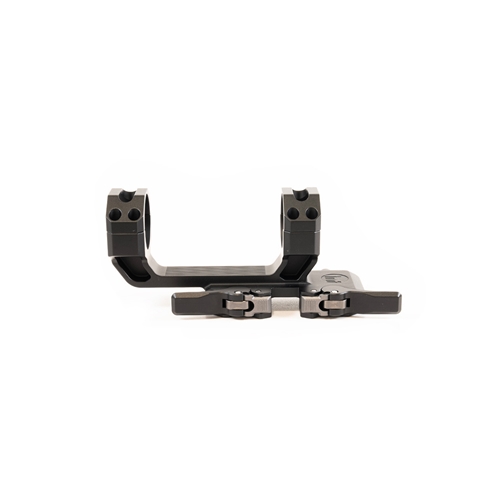

The TX60C comes with a 30 mm one-piece quick-detach scope mount with dual-locking levers (AC112) to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope, or share one thermal on multiple rifles.

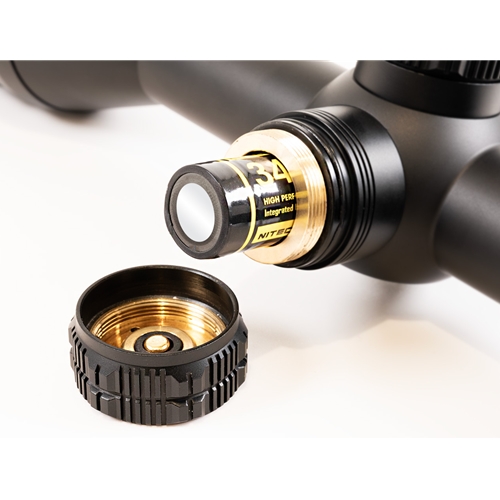

As an evolution from previous BOLT series models, the TX60C can now directly accept common 18650 cell batteries (button-top version) without an extension/adapter.
The TX60C comes with a 30 mm one-piece quick-detach scope mount with dual-locking levers (AC112) to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope, or share one thermal on multiple rifles.
As an evolution from previous BOLT series models, the TX60C can now directly accept common 18650 cell batteries (button-top version) without an extension/adapter.
OLD MEETS NEW

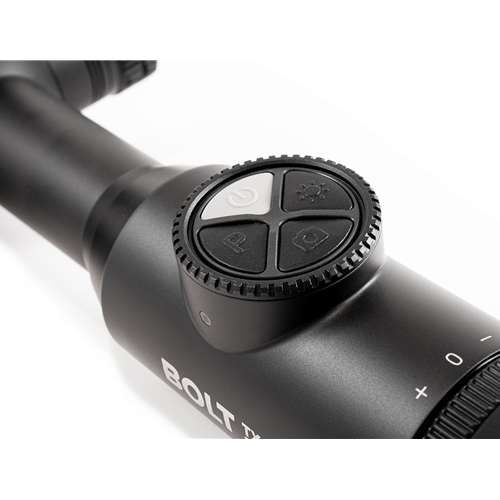

The BOLT features InfiRay Outdoor's innovative new way to control a thermal optic. Unlike other thermal optics with a turret style controller on one side, the BOLT has a large and easy to find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor's mission to combined the traditional style and feel of a day optic and the advanced technology of thermal imaging.
The BOLT features InfiRay Outdoor's innovative new way to control a thermal optic. Unlike other thermal optics with a turret style controller on one side, the BOLT has a large and easy to find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor's mission to combined the traditional style and feel of a day optic and the advanced technology of thermal imaging.
INCLUDES:
• QDM Mount
• Objective Lens Cap
• Eyeguard
• IRAY-AC112 30 mm One-Piece Scope Mount
• 18650 Battery ×2
• Battery Charger
• USB-C Cable for Data/Video
• USB Power Adapter
• Lens Cloth
• Soft Case
• User Manual
• Objective Lens Cap
• Eyeguard
• IRAY-AC112 30 mm One-Piece Scope Mount
• 18650 Battery ×2
• Battery Charger
• USB-C Cable for Data/Video
• USB Power Adapter
• Lens Cloth
• Soft Case
• User Manual
-
Sensor Specifications
- Device Technology
-
Thermal Imaging
- Sensor Type
-
InfiRay MICRO II
- Sensor Resolution
-
1024x1024
- Sensor Pixel Size
-
12μm
- Sensor Frame Rate
-
50hz
- Thermal Sensitivity
-
<18mk
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
-
Optics
- Objective Focal Length
-
60mm
- Detection Range
-
2700 Yards
- Optical Magnification
-
3X
- Digital Magnification
-
4X, stepped
- Horizontal Angular Field of View
-
11.7°
- Objective Lens Material
-
Germanium
- Vertical Angular Field of View
-
11.7°
- Objective Diameter
-
60mm
- Objective F#
-
1.0
- Focusing Mechanism
-
Manual Focus
- Eye Relief
-
50mm
- Diopter Range
-
-5 - +3.5
- Display Type
-
AMOLED
- Display Resolution
-
2560×2560
-
Features & Performance
- Reticle
-
7 (1 Dynamic, 5 Static, 1 DIY)
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Rangefinder
-
Bluetooth ILR-1200-1 LRF (Optional)
- Stand-by Mode
-
Yes
- Picture-in-Picture
-
Yes
- Image Capture
-
Yes
- Wifi
-
Yes
- Mobile App
-
Yes
- User-Updatable Firmware
-
Yes
- Connector Type
-
USB-C
- Connector Output
-
Power/Data
- Storage Capacity
-
128GB
- Onboard Recording
-
Yes
- Power Source
-
USB-C External, 18650 Battery
- Run Time
-
8+
- External Power Source
-
USB-C
- Warranty
-
5 Years
- Startup Time
-
<10 Seconds, Instant from Standby
- Country of Manufacture
-
China
-
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Ingress Protection
-
IP67
- Recoil Rating
-
1000 g/s² (300 Win./7mm Mag)
-
Physical
- Length
-
15.12
- Weight
-
35.27 Oz
- Height
-
3.03
- Width
-
4.09
- Mounting Interface
-
Picatinny MIL-STD 1913 Rail
- Housing Material
-
Aluminum
•12 μm iRay Micro II thermal sensor
• Ballistics Calculator w optional LRF
• ≤18 mK sensitivity• 1.03-inch large-format AMOLED display with ultra-high
2560×2560 resolution
• High frame frequency: 50hz
• T-6061 aluminum housing
• 2700-yard detection range
• Dual power supply solution for extended operation
• Compatible with ILR-1200-1 Bluetooth Laser Rangefinder
Module (optional/not included)
• Four ballistics profiles and a user-defined, multi-variable
ballistics calculator
• 16.0× stepped digital zoom
• Multiple zero profiles and ranges
• Traditional 30 mm diameter housing design
• Built-in 128 GB storage to support image capture and
video recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Built-in digital compass and gravity sensor
• Multiple reticle types and color options
• Ultra-Clear mode for advanced image detail
• Picture in Picture (PIP)
• Defective pixel correction
• Extended eye relief
• Cold and warm image hue options
• User-friendly interface
5 Year Warranty
