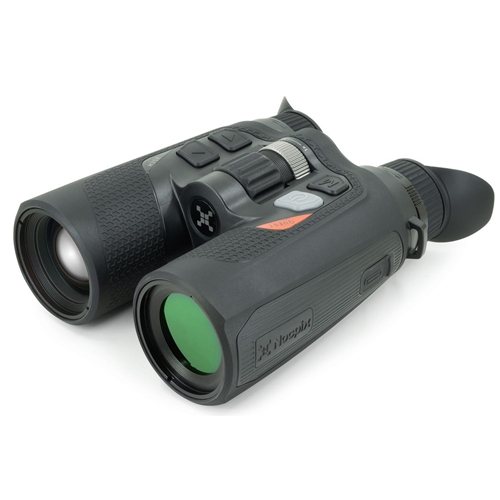

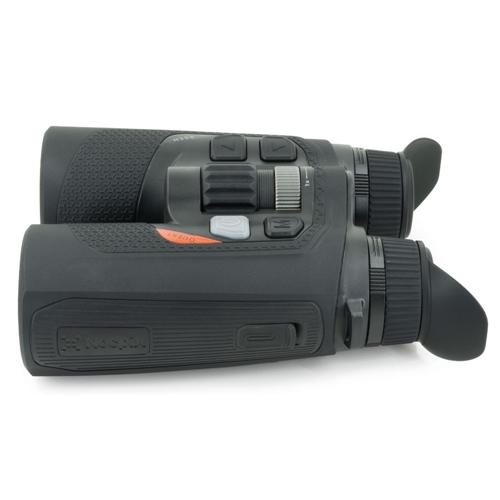

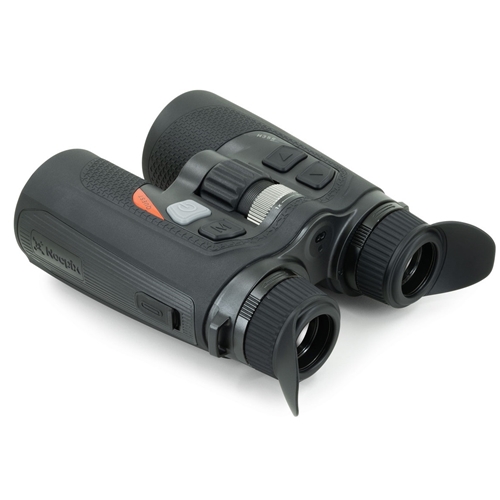

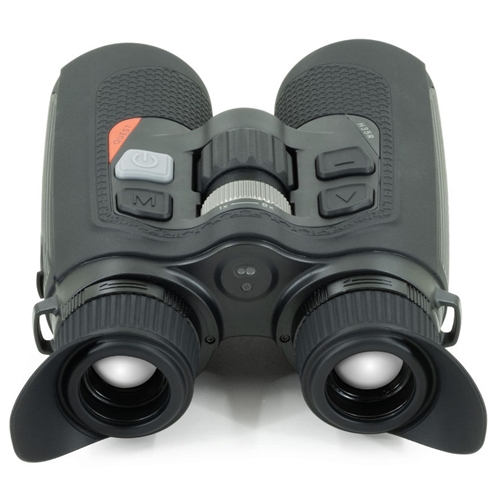

NocPix QUEST H35R LRF 640 12um 3x 35mm 60Hz Thermal Binocular Laser Rangefinder
In stock
List Price: $3,299.00
Regular Price: $3,299.00
On Sale For: $2,999.00
You Save: $300.00
Free 2nd Day Shipping |
All new for 2025, QUEST binoculars deliver a comfortable and intuitive viewing experience. Unlike thermal monoculars, the QUEST binoculars allow users to use both hands and both eyes while scanning - providing a smooth and comfortable feel, just like traditional daylight binoculars. A 12 μm ≤15mK 640×512 thermal sensor captures every detail, while the Reality+ image processing algorithm delivers a vivid picture to the 1920x1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.
QUEST binoculars also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source and keep running all night long. The QUEST is available with a 50 mm objective lens (model H50R) or a 35 mm germanium objective lens (H35R). Each comes with everything you would expect from high-end binoculars, including a comfortable and fully adjustable binocular harness.
Includes:
The QUEST Series thermal imaging monocular ships with everything
you need to get out and hunt.
• Objective Lens Cap
• 18650 Batteries ×2
• 18650 Battery Charger
• USB-C Cable

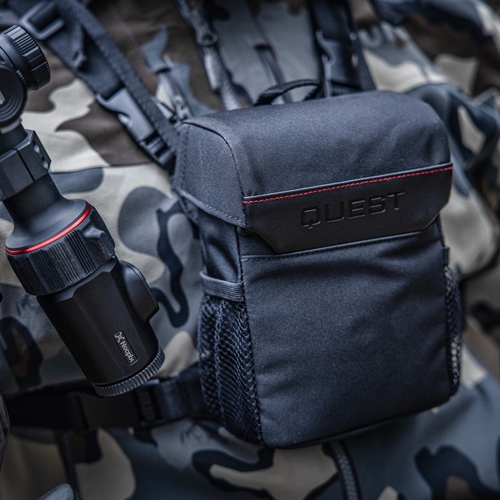

• Carrying Bag and Straps
• Lens Cloth
• User Manual
you need to get out and hunt.
• Objective Lens Cap
• 18650 Batteries ×2
• 18650 Battery Charger
• USB-C Cable
• Carrying Bag and Straps
• Lens Cloth
• User Manual
Sensor Specifications
- Sensor Type
-
Nocpix 640
- Device Technology
-
Thermal Imaging
- Sensor Resolution
-
640×512
- Sensor Pixel Size
-
12μm
- Thermal Sensitivity
-
<15mk
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
- Sensor Frame Rate
-
60hz
Optics
- Objective Focal Length
-
35mm
- Detection Range
-
1970 Yards
- Digital Magnification
-
8X
- Vertical Angular Field of View
-
10°
- Horizontal Angular Field of View
-
12.5°
- Objective Lens Material
-
Germanium
- Optical Magnification
-
3X
- Objective F#
-
0.9
- Objective Diameter
-
35mm
- Display Type
-
AMOLED
- Eye Relief
-
25mm
- Diopter Range
-
-5 to +5
- Focusing Mechanism
-
Manual Focus
- Display Resolution
-
1920x1200
Features & Performance
- Warranty
-
5 Years
- Startup Time
-
<10 Seconds, Instant from Standby
- Rangefinder
-
Integrated 1000 yd LRF
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- Storage Capacity
-
64GB
- Connector Output
-
Power/Data
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- Run Time
-
5+
- Power Source
-
USB-C External, 18650 Battery, Built-In Battery Pack
- Stand-by Mode
-
Yes
- Connector Type
-
USB-C
- External Power Source
-
USB-C
- Country of Manufacture
-
China
- Wifi
-
Yes
- Onboard Recording
-
Yes
- Image Capture
-
Yes
- Video Output
-
Yes
Physical
- Housing Material
-
Polymer
- Weight
-
24.69
- Height
-
2.60
- Width
-
5.43
- Length
-
6.91
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Ingress Protection
-
IP67
WARRANTY
5 Years
• 640 12 μm high-performance thermal detector
• Reality+ technology
• <15 mK sensor sensitivity
• 12 μm high-performance thermal detector
• Integrated 1,000 yd laser rangefinder
• Polymer with rubber overmold housing
• Includes two rechargeable 18650 batteries
• Maximum detection range 2,850 yards
• 1920×1200 AMOLED display
• High frame frequency: 60Hz
• Built-in 64 GB storage to support image capture and video
recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Picture in Picture (PIP)
• Ultra-Clear mode
• Multiple color palettes
• Compact and lightweight
• Warm and cool image-hue options
• Reality+ technology
• <15 mK sensor sensitivity
• 12 μm high-performance thermal detector
• Integrated 1,000 yd laser rangefinder
• Polymer with rubber overmold housing
• Includes two rechargeable 18650 batteries
• Maximum detection range 2,850 yards
• 1920×1200 AMOLED display
• High frame frequency: 60Hz
• Built-in 64 GB storage to support image capture and video
recording
• Built-in Wi-Fi module
• Mobile device App compatible
• Picture in Picture (PIP)
• Ultra-Clear mode
• Multiple color palettes
• Compact and lightweight
• Warm and cool image-hue options
• User-friendly interface
5 Yr Warranty
